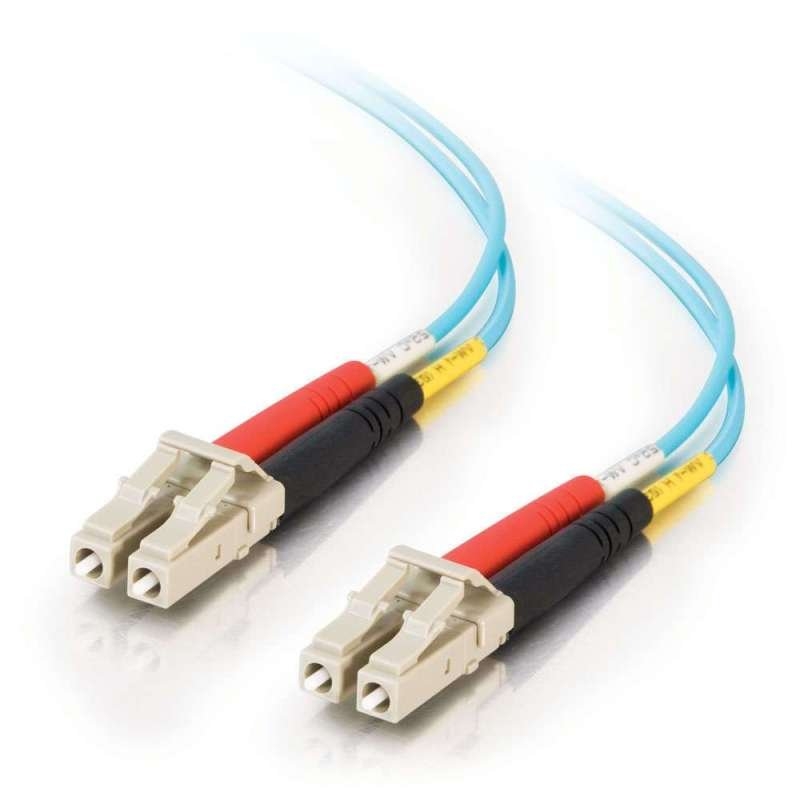

C2G 1M LC-LC 10GB 50/125 OM3 Duplex Multimode PVC Fibre Optic Cable
(LSZH) - Aqua
C2G 1M LC-LC 10GB 50/125 OM3 Duplex Multimode PVC Fibre Optic Cable (LSZH) - Aqua LSZH rated fibre optic cable designed for 10GBase-SR and 10GBase-LRM ports and equipment Product Description This OM3 Duplex Multimode Fibre Optic Cable is ideal for connecting 10GBase-SR, 10GBase-LRM, SFP+ and QSFP+ transceivers for 10 gigabit network connections. This cable has a LSZH jacket which protects from toxic and corrosive gases in poorly ventilated spaces and other areas where it is most critical. This cable also provides backward compatibility with existing 50/125 equipment and the performance headroom required to support LED and VCSEL laser light sources, and 10 Gigabit Ethernet applications. The Low Smoke Zero Halogen (LSZH / LS0H) jacket is composed from materials that lessen the smoke and
halogen emissions when the cable is exposed to extreme temperatures. Product Specifications Colour: Aqua Length: 1.00 Meter Jacket Rating: Standard UPC: 757120855491 Warranty: Lifetime Vendor: C2G Weight: 0.023kg Connectors: LC Connector Dimensions: 10.75mm Height x 12.5mm Width x 50mm Depth (with installed duplex clip) Cable: Optical Multimode 3 (OM3) fibre supporting 2000 MHz.km EMB at 850 nm. 10 Gigabit transfers up to 300 metres using 850 nm VCSEL source Maximum Connector Loss: 0.50 dB Typical Connector Loss: 0.30 dB Typical Return Loss: -25 dB Buffer Material: PVC Buffer OD: 900 µm Jacket Material: LSZH PVC (OFNR riser-rated) Jacket OD: 1.8 mm Installation Tensile Load: 100 N (445 lbs) Long-Term Tensile Load: 50 N (222 lbs) Maximum Tensile Load: 100 N/cm Installation (Loaded)
Minimum Bend Radius: 5.0cm (1.97in) Long-Term (Unloaded) Minimum Bend Radius: 3.0cm (1.2in) Crush Resistance: 750 N/cm Impact Resistance: 1, 000 cycles Flex Resistance: 5, 000 cycles Attenuation at 1300 nm: 1.0 dB/km Attenuation at 850 nm: 3.5 dB/km Operating Temperature: -20°C to +70°C Please Note: Attenuation testing performed in accordance with EIA/TIA-455-171A.
halogen emissions when the cable is exposed to extreme temperatures. Product Specifications Colour: Aqua Length: 1.00 Meter Jacket Rating: Standard UPC: 757120855491 Warranty: Lifetime Vendor: C2G Weight: 0.023kg Connectors: LC Connector Dimensions: 10.75mm Height x 12.5mm Width x 50mm Depth (with installed duplex clip) Cable: Optical Multimode 3 (OM3) fibre supporting 2000 MHz.km EMB at 850 nm. 10 Gigabit transfers up to 300 metres using 850 nm VCSEL source Maximum Connector Loss: 0.50 dB Typical Connector Loss: 0.30 dB Typical Return Loss: -25 dB Buffer Material: PVC Buffer OD: 900 µm Jacket Material: LSZH PVC (OFNR riser-rated) Jacket OD: 1.8 mm Installation Tensile Load: 100 N (445 lbs) Long-Term Tensile Load: 50 N (222 lbs) Maximum Tensile Load: 100 N/cm Installation (Loaded)
Minimum Bend Radius: 5.0cm (1.97in) Long-Term (Unloaded) Minimum Bend Radius: 3.0cm (1.2in) Crush Resistance: 750 N/cm Impact Resistance: 1, 000 cycles Flex Resistance: 5, 000 cycles Attenuation at 1300 nm: 1.0 dB/km Attenuation at 850 nm: 3.5 dB/km Operating Temperature: -20°C to +70°C Please Note: Attenuation testing performed in accordance with EIA/TIA-455-171A.
%20-%20Aqua "Pin It")
Product Description
Reviews/Comments
Add New
Intelligent Comparison
Available
C2G 10m LC-LC 10Gb 50/125 OM3 Duplex Multimode PVC Fibre Optic Cable (LSZH) - Aqua Ebuyer
£35.79
Available
C2G 3M SC-SC 10GB 50/125 OM3 Duplex Multimode PVC Fibre Optic Cable (LSZH) - Aqua Ebuyer
£16.25
Available
C2G 10m SC-SC 10Gb 50/125 OM3 Duplex Multimode PVC Fibre Optic Cable (LSZH) - Aqua Ebuyer
£18.42
Available
30m LC-LC 10Gb 50/125 OM3 Duplex Multimode PVC Fibre Optic Cable (LSZH) - Aqua Ebuyer
£42.76
Available
10m LC-ST 10Gb 50/125 OM3 Duplex Multimode PVC Fibre Optic Cable (LSZH) - Aqua Ebuyer
£20.92
Available
15m LC-ST 10Gb 50/125 OM3 Duplex Multimode PVC Fibre Optic Cable (LSZH) - Aqua Ebuyer
£27.08
Available
15m SC-SC 10Gb 50/125 OM3 Duplex Multimode PVC Fibre Optic Cable (LSZH) - Aqua Ebuyer
£25.98
Available
C2G SC-SC 10Gb 50/125 OM3 Duplex Multimode PVC Fiber Optic Cable (LSZH) Ebuyer
£14.07
