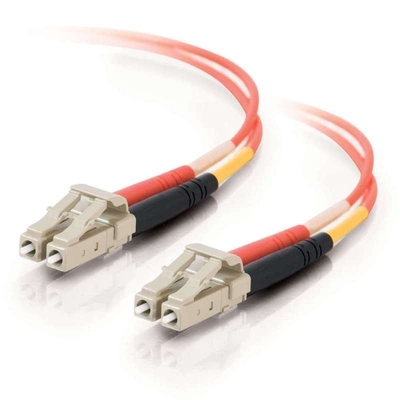

C2G 20M LC-LC 50/125 OM2 Duplex Multimode PVC Fibre Optic Cable (LSZH)
- Orange

Product Description

C2G 20M LC-LC 50/125 OM2 Duplex Multimode PVC Fibre Optic Cable (LSZH)
- Orange Supports longer distances with lower loss than 62.5/125 fibre for Fast Ethernet, fibre channel, ATM & Gigabit Ethernet applications where protection from toxic & corrosive gases is critical Product Description Cost-effective solution that provides higher bandwidth & transmission rates & supports longer distances with lower loss than 62.5/125 fibre. Specifically designed for use with today's narrower aperture components, this cable is fully compatible with multimode applications. The Low Smoke Zero Halogen (LSZH / LS0H) jacket is composed from materials that lessen the smoke & halogen emissions when the cable is exposed to extreme temperatures. This reduces the amount of harmful toxic & corrosive gases that cabling made with plastic materials would otherwise emit into the air during combustion. This construction makes LSZH cables ideal to be used where the protection of people & equipment from harmful corrosive gases is absolutely critical. The patented injection moulding process provides each connection greater durability in resisting pulls, strains & impacts from cabling installs. Each cable is 100% optically inspected & tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 50/125 multimode fibre, immune to electrical interference. Product Specifications

Colour: Orange Length: 20.00 Meter Jacket Rating: Standard UPC: 757120855026 Warranty: Lifetime Vendor: C2G Weight: 0.156kg Connectors: LC Connector Dimensions: 10.75mm Height x 12.5mm Width x 50mm Depth (with installed duplex clip) Cable: Optical Multimode 2 (OM2) fibre supporting 500 MHz.km OFL at 850/1300 nm. Maximum Connector Loss: 0.50 d B Typical Connector Loss: 0.30 d B Typical Return Loss: -25 d B Buffer

Material: PVC Buffer OD: 900 µm Jacket

Material: LSZH PVC (OFNR riser-rated) Jacket OD: 1.8 mm Installation Tensile Load: 100 N (445 lbs) Long-Term Tensile Load: 50 N (222 lbs) Maximum Tensile Load: 100 N/cm Installation (Loaded) Minimum Bend Radius: 5.0cm (1.97in) Long-Term (Unloaded) Minimum Bend Radius: 3.0cm (1.2in) Crush Resistance: 750 N/cm Impact Resistance: 1, 000 cycles Flex Resistance: 5, 000 cycles Attenuation at 1300 nm: 1.0 d B/km Attenuation at 850 nm: 3.5 d B/km Operating Temperature: -20°C to +70°C Please Note: Attenuation testing performed in accordance with EIA/TIA-455-171A.
