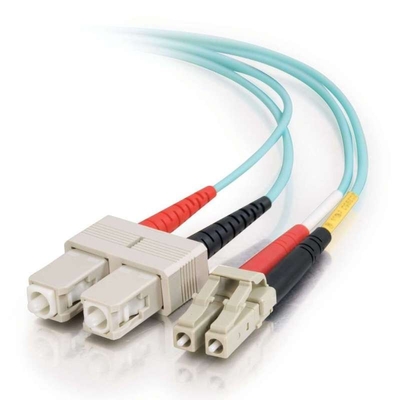

C2G 2M LC-SC 10GB 50/125 OM3 Duplex Multimode PVC Fibre Optic Cable
(LSZH) - Aqua

Product Description

C2G 2M LC-SC 10GB 50/125 OM3 Duplex Multimode PVC Fibre Optic Cable (LSZH)
- Aqua Product Description This OM3 Duplex Multimode Fibre Optic Cable is ideal for connecting 10 G Base-SR, 10 G Base-LRM, SFP+ & QSFP+ transceivers for 10 gigabit network connections. This cable has a LSZH jacket which protects from toxic & corrosive gases in poorly ventilated spaces & other areas where it is most critical. This cable also provides backward compatibility with existing 50/125 equipment & the performance headroom required to support LED & VCSEL laser light sources, & 10 Gigabit Ethernet applications. The Low Smoke Zero Halogen (LSZH / LS0H) jacket is composed from materials that lessen the smoke & halogen emissions when the cable is exposed to extreme temperatures. Product Specifications

Colour: Aqua Length: 2.00 Meter Jacket Rating: Standard UPC: 757120855323 Warranty: Lifetime Vendor: C2G Weight: 0.037kg Connectors: LC Connector Dimensions: 10.75mm Height x 12.5mm Width x 50mm Depth (with installed duplex clip) SC Connector Dimensions: 10.6mm Height x 26mm Width x 58mm Depth (with installed duplex clip) Cable: Optical Multimode 3 (OM3) fibre supporting 2000 MHz.km EMB at 850 nm. 10 Gigabit transfers up to 300 metres using 850 nm VCSEL source Maximum Connector Loss: 0.50 d B Typical Connector Loss: 0.30 d B Typical Return Loss: -25 d B Buffer

Material: PVC Buffer OD: 900 µm Jacket

Material: LSZH PVC (OFNR riser-rated) Jacket OD: 1.8 mm Installation Tensile Load: 100 N (445 lbs) Long-Term Tensile Load: 50 N (222 lbs) Maximum Tensile Load: 100 N/cm Installation (Loaded) Minimum Bend Radius: 5.0cm (1.97in) Long-Term (Unloaded) Minimum Bend Radius: 3.0cm (1.2in) Crush Resistance: 750 N/cm Impact Resistance: 1, 000 cycles Flex Resistance: 5, 000 cycles Attenuation at 1300 nm: 1.0 d B/km Attenuation at 850 nm: 3.5 d B/km Operating Temperature: -20°C to +70°C Please Note: Attenuation testing performed in accordance with EIA/TIA-455-171A.
