Overview Experience the next generation of networking with Cat 6a patch cables from C2G. These network cables enable 10 gigabit data transmission over a 4 twisted pair copper cable, allowing connection distances up to 100 meters. Current Cat 6 cabling systems may only support 10 gigabit ethernet over limited distances. The Cat 6a draft extends the Cat 6 electrical specifications from 250 MHz to 500 MHz. It also proposes a new measurement for Power-Sum Alien Crosstalk to 500 MHz. Alien Crosstalk is a coupled signal in a disturbed pair arising from a signal in a neighboring cable. Low-profile, snagless hood is ideal for high density switch applications. Connector 1: (1) RJ-45 Male Connector 2: (1) RJ-45 Male
Colour: Blue UPC: 757120899129 Warranty: Lifetime Vendor: C2G Weight: 0.208kg Length: 5.00 Meter • Supports IEEE 802.3af & is DTE power compliant • Compatible with T568A & T568B wiring • Provides NEXT performance beyond 600 MHz • Po E rated to four times the standard
...

This Booted Shielded Cat 6a patch cable is ideal to be used with 10 G Base-T ports & equipment, such as network adapters, hubs, switches, routers, DSL/cable modems & patch panels, & will protect a high speed 10 Gigabit network connection from noise & electromagnetic interference. For voice/data/video distribution, this cable will handle bandwidth-intensive applications & drastically reduces both impedance & structural return loss (SRL). Each patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat 6a component requirements. Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality cable & plugs, this design minimises Near-End Crosstalk (NEXT) levels. The moulded, snagless boot prevents unwanted cable snags during installation & provides extra strain relief. Available in a variety of colours to easily color-coded a network installation. Each cable is individually labelled with the length for ease of use. ISO/IEC 11801: S/FTP (Shielded/ Foiled Twisted Pair); Overall braided Shielding, over four Foil-shielded Twisted Pairs. Connector 1: (1) RJ-45 Male Connector 2: (1) RJ-45 Male ...

Overview The 15cm 4-pin 3.5mm Male to Dual 3.5mm Female Adapter is the perfect solution for connecting a set of headphones & a microphone to a single 4-pin 3.5mm port on a laptop, tablet, mobile phone or other mobile device. Newer laptops, mobile phones & other mobile devices only offer a single 4-pin 3.5mm audio port capable of supporting both an audio input & an audio output. This adapter provides two separate 3.5mm ports that will support a mono microphone & a set of stereo headphones or a set of external speakers. The compact design of this adapter makes it easy to carry in a laptop bag or briefcase. Note: The 3.5mm port on the device must be a 4-pin 3.5mm port capable of supporting a mono audio input & a stereo audio output. •
Colour: Black • UPC: 757120801146 • Warranty: Lifetime
...

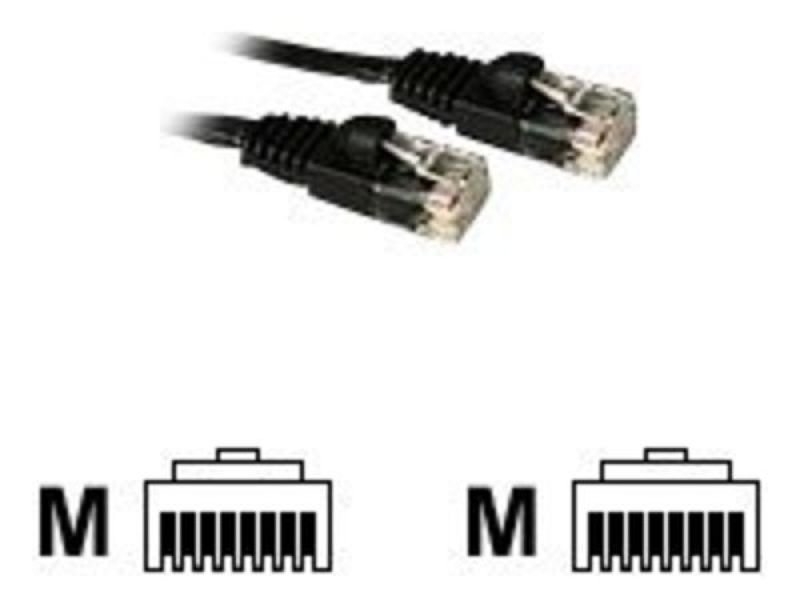

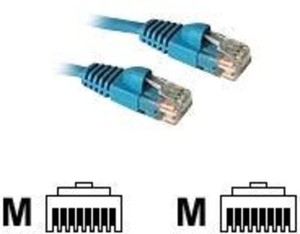

Snagless booted design for network adapters, hubs, switches, routers, DSL/cable modems, patch panels & other high performance networking applications. For fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat 5e TIA/EIA standards, & drastically reduces both impedance & structural return loss (SRL). Each of the individual pairs are bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimises Near-End Crosstalk (NEXT) levels. The moulded, snagless boot prevents unwanted cable snags during installation & provides extra strain relief. Available in a variety of colours to easily colour-code your network installation. Each cable is individually labelled with the length for ease of use. Product Features • Snagless booted design protects clips when plugging & unplugging • Standard RJ45 connectors & unshielded twisted pair wires • Available in 11 colours to colour-code a network • Available in lengths up to 100m Electrical Characteristics • Conductor DC Resistance: 89 Ohm/km (maximum) • Insulation Resistance: 100 Ohm/km (minimum) • Dielectric Strength: 500 MV/m Physical Characteristics • Conductor Type/ Size
- Bare Copper Stranded, 24 AWG (7/0/2.0) Insulation • Material
- H-D PE • Diameter
- 0.95 ± 0.05mm • Colours
- Blue/ Blue-White, Orange/ Orange-White, Green/ Green-White, Brown/ Brown-White Jacket • Material
- FR-PVC • Nominal Thickness
- 0.55mm • Outer Diameter
- 5.30mm Connector • Material
- Polycarbonate • Hood Material
- Moulded PVC • Contact Material
- Copper alloy plated with gold-50µm • Number of contacts
- Eight Conductor • 4-pair (UTP) 24 AWG stranded copper • 50 micron gold-plated RJ45 Other Specifications • Approvals
- Ro HS Compliant, Verified to EIA/TIA 568B.2 • Wired
- TSB 568B AT&T 258A • Package Type
- Polybag Product Uses • 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3) • 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-Any LAN • 100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM • Voice













...

C2G 0.3m Cat 6 Booted Unshielded (UTP) Network Patch Cable
- Black For fast Ethernet & Gigabit computer networks that require bandwidth-intensive
...

One port delivers it all with Thunderbolt 3 Thunderbolt 3 brings lightning speed data transfer, dual 4K video support, high bit depth audio, & power delivery up to 100W. Get more done with less hassle by carrying one cable to complete nearly any task. Thunderbolt 3 utilises the USB (Universal Serial Bus) Type-C Connector The USB (Universal Serial Bus)-C connector is symmetrical & identical on both sides, so it does not matter if you plug it in upside-down or right-side-up. Plug it in for a successful connection the first time, every time, whilst preventing damage to the connector port. The USB (Universal Serial Bus) Type-C connector has a robust design, allowing for the connector to be plugged in & un-plugged up to 10, 000 times. The sturdy construction ensures that the product provides peace of mind & is built to stand up to the rigors the most demanding on-the-go life. Thunderbolt 3 brings lightning-speed data transfer, dual 4K at 60 Hz video support, high bit depth audio, & power delivery up to 100W. Deliver up to 40 Gbps to or from a Thunderbolt 3 enabled port. Whether uploading or downloading data, this cable is an ideal solution to transfer large amounts of information such as high-resolution photos for editing or storage, 3D models for video game authoring or HD video for editing. Whether you’re desk-based or on-the-road, this lightweight, portable one-cable solution ensures that your Thunderbolt 3 equipped laptop, smartphone, or tablet is fully charged & ready to go whilst displaying ULTRA HD video content, transferring files, or streaming audio. Deliver up to 100W of charging power to or from the connected device with smart power delivery. With its robust design, the USB (Universal Serial Bus)-C connector can be plugged in & un-plugged up to 10, 000 times; six times more than a standard USB (Universal Serial Bus) A Connector. in addition, the USB (Universal Serial Bus)-C connector is user-friendly & has a symmetrical design which is identical on both sides, which means it does not matter if you plug it in upside-down or right-side-up
- it will plug in the first time, every time, whilst preventing damage to the connector port.
...

Why run all new cables for RS-232 control of your audio/video system, when you can use this easy adapter? The Velocity RS-232 adapter leverages your DB9 or 3.5mm stereo audio cable to run 3-conductor RS-232 control signals between your control unit & your video display. Fully moulded DB9 & 3.5mm connectors provide excellent strain relief. This adapter is ideal to be used with computers, projectors, & any control unit/display requiring 3-conductor RS-232 serial control. Please Note: Not all serial control methods are supported by this adapter. This product is intended only for use with 3-wire RS-232 control cables with common ground (pin 5), transmit data (pin 3), & receive data (pin 2) Product Specifications Colour: Black Length: 0.50 Meter Jacket Rating: Standard Non-Rated UPC: 757120871873 Warranty: Lifetime Vendor: C2G Weight: 0.060kg Pin-out: • DB9 Pin 3 to 3.5mm Tip • DB9 Pin 2 to 3.5mm Ring • DB9 Pin 5 to 3.5mm Sleeve ...

The USB (Universal Serial Bus)-C toC 3.1 Male to Male Cable is the perfect solution for connecting two standard USB (Universal Serial Bus) Type C enabled devices or accessories up to 3ft apart for fast charging & high-speed data transfer. Whether youre desk-based or on-the-go, this one-cable solution ensures that your USB (Universal Serial Bus)-C equipped laptop, smartphone or tablet is fully charged & ready to go with the 3A charging output, whilst simultaneously transferring photos, music or data at speeds up to 5 Gbps. in addition, the USB (Universal Serial Bus)-C connector is user-friendly & has a symmetrical design which is identical on both sides, which means it does not matter if you plug it in upside-down or right-side-up
- it will plug in the first time, every time, whilst preventing damage to the connector port.
...

Device A/V Made Simple with USB (Universal Serial Bus) Type-C Get the most of your devices by utilising the USB (Universal Serial Bus) Type-C port for audio & video connectivity. C2G USB (Universal Serial Bus)-C adapter cables will help take you from the small screen of your device to the big screen of your HDTV or projector. Available in various lengths for HDMI, Display Port & VGA. Experience 4K ULTRA HD displays with this USB (Universal Serial Bus)-C to Display Port Adapter Cable which provides a fast & reliable connection between a USB (Universal Serial Bus) Type C enabled Chromebook, laptop, tablet, smartphone or other device, & the Display Port input of a projector or display – making it an ideal solution for the office, work space applications or classrooms. This adapter utilises the audio/video capabilities built into USB (Universal Serial Bus) Type-C ports to feed an audio/video signal to a Display Port monitor to achieve high quality, 4K (ULTRA HD) video image. in addition, the USB (Universal Serial Bus)-C connector has a symmetrical design which is identical on both sides, which means it does not matter if you plug it in upside-down or right-side-up
- it will plug in the first time, every time, whilst preventing damage to the connector port. The cable form factor of this adapter provides a simple & convenient solution that eliminates the need for a separate adapter or additional cabling, offering a straightforward installation.
...

Device A/V Made Simple with USB (Universal Serial Bus) Type-C Get the most of your devices by utilising the USB (Universal Serial Bus) Type-C port for audio & video connectivity. C2G USB (Universal Serial Bus)-C adapter cables will help take you from the small screen of your device to the big screen of your HDTV or projector. Available in various lengths for HDMI, Display Port & VGA. Experience 4K ULTRA HD displays with this USB (Universal Serial Bus)-C to Display Port Adapter Cable which provides a fast & reliable connection between a USB (Universal Serial Bus) Type C enabled Chromebook, laptop, tablet, smartphone or other device, & the Display Port input of a projector or display – making it an ideal solution for the office, work space applications or classrooms. This adapter utilises the audio/video capabilities built into USB (Universal Serial Bus) Type-C ports to feed an audio/video signal to a Display Port monitor to achieve high quality, 4K (ULTRA HD) video image. in addition, the USB (Universal Serial Bus)-C connector has a symmetrical design which is identical on both sides, which means it does not matter if you plug it in upside-down or right-side-up
- it will plug in the first time, every time, whilst preventing damage to the connector port. The cable form factor of this adapter provides a simple & convenient solution that eliminates the need for a separate adapter or additional cabling, offering a straightforward installation.
...
